H Beam Production Line (I Beam Welding Line)

H Beam Production Line (I Beam Welding Line)

Description of H Beam Production Line (I Beam Welding Line):

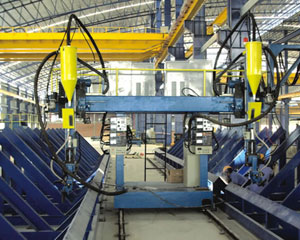

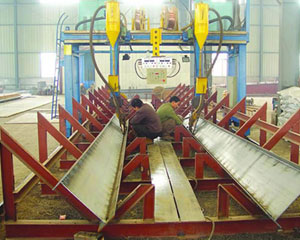

This H beam welding line, also called I beam welding line, is specially used for welding assembled H-type beams, I-type beams, and T-type beams automatically. We have now two kinds of models: double-column beam automatic welding machine and gantry type automatic welding machine.

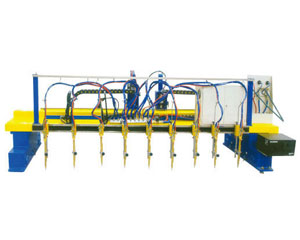

For all parts of H-beam steel appear to be right angle, it has been widely used for its merits of strong bending strength in all direction, simple construction, cost saving and light structural weight. The H beam production line of our company can accomplish the production for H-beam steel with high product quality and precise production process. The multi-head flame strip cutting machine has high working efficiency for it can process several steel plates at the same time. The H-beam assembling, welding and straightening machine is equivalent to three sets of equipment of assembling machine, gantry type welding machine and straightening machine. It improves production efficiency and decreases the production cost effectively.

Our H beam production line is based on the strip cutting machine, and it has economical and practical CNC functions. It can be used to process both the straight plates and the irregular ones. Besides, the beam of this welding line has been bended, welded, and annealed in order to eliminate its inner stress. So it is stable, rigid, and difficult to deform even after long-time use.

To ensure its stable and reliable performance, this H seam welding line has used many components from internationally famous brands, such as servo motor, reducer, decompression valve, gas pipe, solenoid valve, cutting torches, etc.

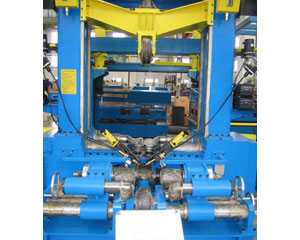

The manufactured multi-head vertical strip cutting machine (numerical control vertical strip cutting machine), automatic H beam assembly machine, H beam steel welding machine, H-beam flange straightening machine and H beam steel shotblasting machine can make up the H beam production line.

Features of H Beam Production Line (I Beam Welding Line):

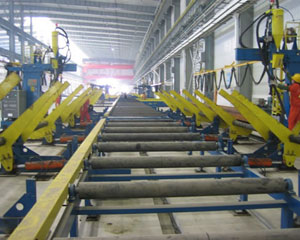

1. The H beam production line is composed of an H beam spot welding assembly machine, steel moving machine, cantilever cutting machine, chain type tilter, hydraulic tilter,hydraulic straightening machine, etc.
2. Automatic production is used for assembling, tilting, welding, work piece conveying, straightening, shot blast cleaning, etc.

Technical Parameter of H Beam Production Line (I Beam Welding Line):
Rail span 3000mm~6000mm
Rail length 15000mm
Effective route 12500mm
Cutting 80~3200mm
Cutting velocity 20~6000mm/min (Stepless speed regulation)
Longitudinal strip cutting torch 9 units
CNC cutting torch 2 units

ABK Machinery is a professional H beam production line manufacturer in China. Our H/I beam welding line could be applied to industries like steel structure making, petrol industries, construction industry, power stations and more. You will be satisfied with our H/I beam welding line, which is exported to Brazil, Germany, France, Italy, Vietnam, Singapore, Spain and other countries. We have always conducted our business in a sincere manner and with the purpose of achieving mutual benefit and win-win results with our customers.
