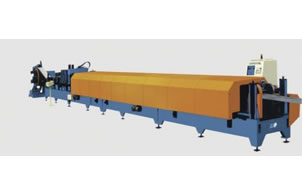

C and Z Purlin Forming Machine

C and Z Purlin Forming Machine

Techniques Flow
Loading steel coil → decoiling and feeding → leveling → punching to length →cut to length → roll forming → run out table

General Description
This machine can form the hot/cold rolled steel strip and can get various specification purlins by changing the spacers. The forming speed can reach to 30m/min. it is the fully automatic purlin forming line for steel structure industry.

Main technical Parameter:

Item Parameters
Type C Shape / Z purline
Material Type Thickness (mm)
Strength (Mpa)
Steel strip
1.6-3.2 1.6-2.2
230-300 300-350
Max. forming speed(m/min) 30
Roller Material D2
Roller Driven Type Motor Driven
Controller PLC
Operation Window2000
Hydraulic System Pressure (Mpa) 25
Hydraulic Station Motor Power (kw) 60
Total Power (kw) 65
Total Weight (kg) About 18000

By absorbing merits of similar C and Z purlin forming machine and using new technology from abroad and China domestic, Shanghai Salei is the professional producer to develop and manufacture the family C and Z purlin forming machine products including H-beam (light steel, heavy steel) , T-beam welding production line, bridge-face U-stiffer welding production line, and steel structure cold roll forming production line, box beam production line as well as CNC waterjet cutting machine. With years development, Salei C and Z purlin forming machine have been spread over Saudi Arabia, Russia, Middle Asian, Southeast Asian, Australia, Europe, South American, North American, etc. Look forward to establishing mutually beneficial cooperation.
