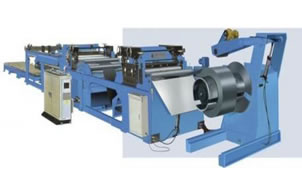

Steel Plate Correcting Flat and Transverse Machine

General Description
This production line is to cut cold steel rolling curling board, stainless curling board, aluminum curing into different sizes of board materials. This machine is special equipment for uncoiling, leveling, cutting and stacking the steel according to the requirement of client. It mainly consists of uncoiled, leveling system, feeding system, cutting system, conveying system, and stacking system and so on. We can design and manufacture different specification according to different requirement of the client.

Main Technical Parameter

Project	Units	Choice scope
Coil thickness	mm	0.3-2,0.5-3,0.5-5(aluminum)
Coil width	mm	1250,1500,2000
Weight of roll	t	12
Leveling precision	mm/m㎡	1.2
Scale accuracy	mm	±0.50
highest speed of sets	mm/m㎡	40, 60, 100
Total power units	kw	-65, -95

By absorbing merits of similar steel plate correcting flat and transverse machine and using new technology from abroad and China domestic, Shanghai Salei is the professional producer to develop and manufacture the family steel plate correcting flat and transverse machine products including H-beam (light steel, heavy steel), longitudinal shear machine group, bridge-face U-stiffer welding production line, and steel structure cold roll forming production line as well as CNC waterjet cutting machine. With years development, Salei steel plate correcting flat and transverse machine have been spread over Saudi Arabia, Russia, Middle Asian, Southeast Asian, Australia, Europe, South American, North American, etc. Look forward to establishing mutually beneficial cooperation.
