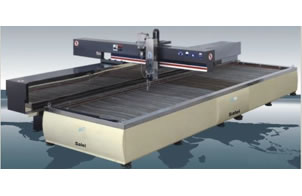

Cutting Platform
Description:
It should remark that the work table size can manufacture in our company as customer required.
Futures:
1. Over-travel auto positioning and soft positioning protection is available.
2. The newly mazy prevention and z-axis completely enclosed design table in our company can prevent sand and water from eroding the guide screw and lead rail.
3. Special lubrication system:
The table made in our company all adopts auto mass lubrication system to make oil reach every oil site on time, which makes the cutting table easy and convenient to maintain.
| A-Class Banausic Style | |||||
| Cantilever-type | Gantry-type | ||||
| Model | Cut area | Max Pressure | Model | Cut Area | Max Pressure |
| SL420-X0810 | 0.8m×1.0m | 420MPA | SL420-L1515 | 1.5m×1.5m | 420MPA |
| SL420-X1213 | 1.2m×1.3m | 420MPA | SL420-L2015 | 2.0m×1.5m | 420MPA |
| SL420-X1515 | 1.5m×1.5m | 420MPA | SL420-L2515 | 2.5m×1.5m | 420MPA |
| SL420-X1520 | 1.5m×2.0m | 420MPA | SL420-L2020 | 2.0m×2.0m | 420MPA |
| SL420-X1525 | 1.5m×2.5m | 420MPA | SL420-L3015 | 3.0m×1.5m | 420MPA |
| SL420-X1530 | 1.5m×3.0m | 420MPA | SL420-L3020 | 3.0m×2.0m | 420MPA |
| SL420-X1540 | 1.5m×4.0m | 420MPA | SL420-L2030 | 2.0m×3.0m | 420MPA |
| SL420-X1560 | 1.5m×6.0m | 420MPA | SL420-L4015 | 4.0m×1.5m | 420MPA |
| SL420-X2020 | 2.0m×2.0m | 420MPA | SL420-L4020 | 4.0m×2.0m | 420MPA |
| SL420-X2025 | 2.0m×2.5m | 420MPA | SL420-L2040 | 2.0m×4.0m | 420MPA |
| SL420-X2030 | 2.0m×3.0m | 420MPA | SL420-L2560 | 2.5m×6.0m | 420MPA |
| SL420-X2040 | 20.m×4.0m | 420MPA | SL420-L3060 | 3.0m×6.0m | 420MPA |
| SL420-X2060 | 2.0m×6.0m | 420MPA | SL420-L4060 | 4.0m×6.0m | 420MPA |
| Technical Data of CNC Cutting Platform | |
| Work area(X,Y) | SL 420-L series (L=Gantry type) |
| X=Gentry Y=Base | all axis are servo controlled |
| Motion speed in each axis | 0-15m/min(600ipm)in X&Yaxis,0-1.5m/min(60ipm)in Z axis |
| Precision in axis | X,A axis ±0.05mm(0.002"),Y,Z,R axis±0.08mm(0.003")±0.025mm per 300mm(0.001"per ft) |
| Re-position precision | ±0.05mm(0.002") |
| Max cutting dispersion | ±0.06mm(0.002") |
| The max speed of process | ±15m/min(600 ipm) |
| Water-dust proof system | All the motion part is protecting by water-dust proof system |
| Auto-bridge baiance adjust | Available in bridge-type cutting table |
| Power break protect | Complete solution for the power break protect during cutting |
| Sallage removal system | (optional)suitable design for sallage removal system |
| system Lubricate | Auto-lubricate system(control by CNC controller) |
| hopper Abrasive | Volume adjustable abrasive hopper control by CNC controller patented |
| Screw Pneumatic straightening system | Too long screw in protecting by pneumatic straightening system-patented |
| Drive mode in each axis | CNC drive by servo motor system and ball-screw, linear-guide way in X,Y&Z axis. |
| Motion system in X&Y axis | Ball screw & linear guide-way drive system from Taiwan.(HIWIN/ABBA). servo motor in X & Y axis from Japan (FUJIL,MITSUBISH) |
| Motion system in Z.A.B axis | "THK" guide slider and Servo motor in "Z&A" axis from Japan. Servo motor in "Z, A, B" axis from Japan(Panasonic& YASKAWA) |
| High pressure piping | 6.35×9 meters&9.53×1.6meters high-pressure tube from USA. |
